1. Introduction
It is generally known that the recording script, which is a major part of speech corpora (Chevelu & Lolive, 2015; Möbius, 2000), greatly affects the quality of synthesized sentences generated by speech synthesis systems. Previous studies mostly focus on efficiency in the script design based on phonetic coverage and propose to use greedy algorithms to select a minimal number of sentences with maximal phonetic coverage (Bozkurt et al., 2003; Kominek & Black, 2003, 2004; Matoušek et al., 2001; Torres et al., 2019; Van Santen & Buchsbaum, 1997). Apart from phonetic coverage, prosodic coverage is also considered from a linguistic perspective. Tonal information is employed based on syllables in a tonal language like Chinese languages (Tao et al., 2008; Zhu et al., 2002). And lexical stress information is considered in stress-timed languages like English (Dong et al., 2009). To deal with different prosodic realizations, Chevelu & Lolive (2015) and Bonafonte et al. (2005) recommend keeping at least ten realizations of each concatenation unit in the script. However, phrasing information cannot be included directly during the script designing stage, because phrasing information cannot be predicted from the text. Kawai et al. (2000) proposes to select sentences using a phrasing prediction module, the front-end part of the speech synthesis engine.
Word coverage and readability are also proposed to be considered in Dong et al. (2009). They used Token Coverage Rate (TCR) and Corpus Coverage Rate (CCR) to improve the unique word coverage in the given corpus for which readability is measured using the Flesch Reading Ease Score (FRES) and the Flesch-Kincaid Grade Level (FKGL) (Klare, 1974-1975). In addition to these word coverage measurements, Kim et al. (2013) suggests to consider the entropy of each unique word. To improve readability, it is also proposed to select a group of sentences which together contain only 10,000 high-frequency words (Honnet et al., 2017) although such selection could, however, result in excluding low-frequency words characterizing certain domains.
The state-of-the-art high-quality speech synthesis systems are based on Deep Neural Network techniques approach (Arık et al., 2017; Purwins et al., 2019; Van den Oord et al., 2016; Wang et al., 2017) and unit selection and concatenation approach (King, 2014). For both approaches, a large amount of data is indispensable, but few studies address the issue of constructing a large speech corpus. Furthermore, recent research also reports on the use of found data for Text-to-Speech as in Gallegos et al. (2020), Kuo et al. (2019), Park & Mulc (2019), Prahallad & Black (2011), Watts et al. (2013), and Zen et al. (2019). These studies focus on judging the quality of the acoustic characteristics of the sound, but the methods and standards to apply in selecting sentences from the data has rarely been dealt with.
The goal of this paper is to propose a method of designing a large recording script for open domain English speech synthesis. The completed script will be analyzed by using four criteria, word coverage, high-frequency vocabulary coverage, phonetic coverage, and readability. Here, a “large” recording script means a script consisting of at least 500,000 words, which would correspond to about 50 hours of recording. The results of this study is also expected to serve as a guide for selecting sentences from found data.
This paper is organized as follows. Section 2 describes the script design and the process of selecting sentences. In Section 3, the statistics of the final script are presented, and in Section 4, the final script is analyzed in terms of four factors proposed in Section 2. Section 5 concludes the paper including discussion.
2. Methods
The text corpus is composed of both read-aloud style sentences and conversational style sentences, and the ratio of the number of words contained in each is set at 7 to 3 respectively.
For collecting read-aloud style text, five American daily newspapers covering different regions of the United States are used. The subjects of news articles were classified into 12 domains by referring to the sections of each newspaper, such as politics, world, business, technology & science, sports, education, humanity, culture, lifestyle, accidents, climate & environment, and health. Major domains are classified into 294 sub-domains. This design of categories is crucial for collecting sentences containing various unique words specific to each domain, which will lead to high word coverage. Collecting at least 20 sentences per sub-domain is recommended to maintain the balance of different domains. And only up to 10 sentences are recommended to be collected in each article to ensure various vocabulary of corresponding topics within a sub-domain.
The length of sentences is also considered for different prosodic realizations, such as stress, rhythm and intonation. The sentences are thus divided into phrases, short sentences (5–14 words), medium sentences (15–24 words), and long sentences (25–34 words) with their composition ratio of 1:10:3:2.
For collecting sentences of conversational style text, movie subtitles provided by Subscene (https://subscene.com/) were used. American movies were mainly selected and classified according to their subject matters into 4 major domains: professionals, specialty, fantasy, and daily life. Major domains were in turn further classified into 36 sub-domains. The domain or the sub-domain of each film was judged based on the content of the movie review along with personal experience and knowledge of the experts. At least 5 movie subtitles were collected for each sub-domain.
The length of sentence is not considered in conversational style because most of the conversational style sentences contain less than fifteen words. Instead, the traditional sentence types are considered to provide prosodic diversity. Declarative sentences, yes/no questions, wh-questions, and imperative sentences are selected at their compositional ratio of 10:2:2:1.
Three linguistic experts participated in selecting and analyzing sentences of both styles.
Each news article selected is downloaded from its URL and it is decomposed into sentences using Natural Language Toolkit (NLTK) (Bird et al., 2009). Then, the sentences are sorted according to the number of words in ascending order. The basic data frame used for collecting sentences include 5 columns: domain, sub-domain, sentence, length of sentence, and URL. A collection status table is also provided at the right corner of each working page, so that the experts can check and comply with the collection ratio of sentences. In sum, the corpus is constructed with sentences selected in 294 sub-domains, considering unique word corresponding to the given sub-domain and the sentence length.
A total of 237 films are selected and their subtitles are downloaded through Subscene (https://subscene.com/), and all the subtitles are integrated into one document. While the corpus of read-aloud style text is collected by selecting sentences one-by-one, the sentences of conversational style are constructed based on this integrated corpus. A certain number of conversational style sentences appear in almost all sub-categories with high frequency, such as “I don’t know,” or “What are you doing?” We call these types of sentences ‘basic conversational style sentences,’ and they are extracted from the integrated corpus. However, sentences consisting of swear words or names were excluded despite their high frequency appearance.
The remaining sentences are selected from each of 36 sub-domains. For each sub-domain, sentences containing high-frequency words are selected. In addition, the sentences uttered before and after these selected sentences are reviewed and those comprising domain-specific words are also selected. Then, sentences containing high-frequency N-grams are also selected, retaining collocations, which is important in natural sounding. The tokenization of each sentence is performed using NLTK (Bird et al., 2009).
The final script completed as described above is analyzed based on the following four criteria:
For word coverage, two measurements are used, the type (or unique word) coverage (UC) and the token coverage (TC). The type coverage indicates the ratio of unique type occurrences of the script and the token coverage indicates the ratio of token occurrences of the script. These measurements are analogous to those proposed in Dong et al. (2009). Supposing X is a part or the whole of our script, and Y is the test corpus, the type coverage is calculated as
where U(x) is the number of unique words in the corpus x. Similarly, the token coverage is calculated as
where T(x) is the total number of tokens in the corpus x.
In order to calculate the high-frequency vocabulary coverage, we use the top 10,000 words selected in the BNC/COCA headword lists from the Victoria University of Wellington's Vocabulary lists (Nation, n.d.).
For the phonetic coverage, the diphone coverage and the triphone coverage are extracted after the script is converted into phone sequences using the CMU Pronouncing Dictionary, which is available online (http://www.speech.cs.cmu.edu/cgi-bin/cmudict), and the G2P (Park & Kim, 2019).
To evaluate the readability of recording scripts, the FKGL (Klare, 1974–1975) is used. As shown in (3) below, FKGL is based on a formula that includes the average number of words per sentence (AWS) and the average number of syllables per word (ASW). As FKGL values vary from 0 to 18, FKGL of lower than 0 was merged into level 0 and that of greater than 18, level 18.
3. Results
In order to avoid excessive collection of overlapping words, we periodically reviewed the status of new words at every phase when about 5,000 sentences are collected. Table 1 shows the increasing trend in the number of words for each phase. During the five phases, the number of tokens and types in read-aloud style sentences show a constant increase, with more than 70,000 tokens and 5,000 types for each phase. Similarly, in the case of conversational style sentences, the trend is relatively constant, increasing by 50,000 tokens and 3,000 types during the 3 phases.
| Read-aloud style | Conversational style | |||
|---|---|---|---|---|
| Phase | Token | Type | Token | Type |
| 1 | 75,209 | 12,988 | 54,934 | 7,097 |
| 2 | 150,951 | 19,939 | 100,202 | 10,447 |
| 3 | 226,200 | 24,987 | 146,725 | 13,063 |
| 4 | 302,383 | 29,393 | ||
| 5 | 402,958 | 34,743 | ||
When all phases are completed, the final script obtained consists of 43,013 sentences, 27,085 read-aloud style sentences and 15,928 conversational style sentences, which amount to 549,683 tokens and 38,356 types. Table 2 and Table 3 provide detailed statistics for each style of sentences. The average number of tokens, which indicates the average length of each type of sentences, and the average number of types are provided for each style of script. The average numbers are calculated by dividing the total number by the number of sentences. The average number of tokens is 14.88 and the average number of types 1.28 in the read-aloud text, while the average number of tokens is 9.21 and the average number of types 0.82 in the conversational text.
Figure 1 shows the percentage of unique words (type) inclusion for each domain of read-aloud style sentences. The average ratio of unique words in each domain is 22.71%. This indicates that various words are selected almost evenly from domain to domain as planned.
Table 4 shows the ratio of overlap between read-aloud style sentences and conversational style sentences in terms of unique words and N-grams. As shown in Table 4, 65.9% of all types are included only in read-aloud style sentences, and 9.4% of all types belong to conversational style sentences, while 24.6% overlap between the two. On the other hand, the overlap ratio of N-grams between two styles is 4.3% (2-grams) and 1.9% (3-grams), which indicates that collocations differ significantly depending on the style of the sentence.
| Read-aloud style only (%) | Overlap (%) | Conversational style only (%) | |
|---|---|---|---|
| Types | 25,293 (65.9) | 9,450 (24.6) | 3,613 (9.4) |
| 2-grams | 6,292 (76.9) | 355 (4.3) | 1,536 (18.8) |
| 3-grams | 497 (71.0) | 13 (1.9) | 190 (27.1) |
4. Analysis
Because the read-aloud style sentences are not selected using a specific corpus, part of Kaggle’s News Articles dataset (2018), which consists of 18,506,913 tokens and 73,931 types, is used as the test corpus. For the conversational style sentences, the original corpus consisting of 237 movies is used as the test corpus. Table 5 presents token coverage and type coverage of the whole script and those of each style. The type coverage of the read-aloud style script is 33.86%, that of the conversational style script 29.39%, and that of the whole script 36.86%. These numbers should be significant, given that the number of tokens of our script is 2.97% of that of the test corpus extracted from News Articles dataset, and that of the conversational style script is 5.06% of the original corpus.
| Token coverage (%) | Type coverage (%) | Test corpus | |
|---|---|---|---|
| Whole script | 2.97 | 36.86 | News Articles |
| Read-aloud style | 2.18 | 33.86 | News Articles |
| Conversational style | 5.06 | 29.39 | Movie corpus |
Two corpora were created to be compared to our script, using only CNN data from News Articles dataset in Kaggle (2018). CNN_549K has the similar volume of tokens, 549,849 words, to that of the whole script. CNN_402K contains 403,183 tokens similar to read-aloud style sentences.
Table 6 shows the high-frequency vocabulary coverage of the script and the test corpora. Comparing the whole script and CNN_549K, we see that the whole script contains more various high-frequency vocabulary, 73.82%, than 61.53% in CNN_549K despite the similar total number of tokens.
For phonetic coverage analysis, a total of 42 units are used, composed of the CMU Pronouncing Dictionary’s 39 phonemes, plus two silence symbols (before sentence, SIL1; after sentence, SIL2) and one pause symbol (PAU). In the process of combining diphone set and triphone set, meaningless combinations such as (SIL1+ PAU), (SIL1+SIL2), (PAU+SIL2) and (PAU+PAU) are eliminated.
Table 7 presents the phonetic coverage for each style of sentences. For each style, diphone coverage and triphone coverage are provided with and without word stress. If the stress is not included, the diphone coverage and the triphone coverage of the whole script are 86.70% and 38.92%, respectively.

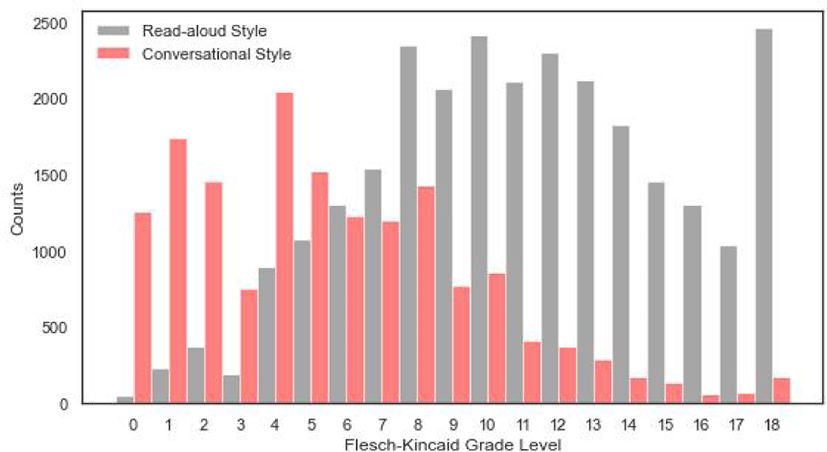

Figure 2 shows the frequency of read-aloud style and convertsational style sentences per FKGL. The average FKGL of read-aloud style sentences is 11.18 and that of conversational style sentences 5.36. The FKGL distribution of read-aloud style sentences leans towards higher levels, while that of conversational style sentences leans towards lower levels. In total, the average FKGL is 9.03. The frequency distribution of read-aloud style and convertsational style sentences shows that the selected script has fairly good coverage of readability levels.
5. Discussion and Conclusion
This paper proposes a method of designing a large recording script for open domain English speech synthesis. The final script consists of 43,013 sentences, which are composed of 549,683 tokens and 38,356 types. The read-aloud style sentences are collected manually based on a classification of domains and sub-domains, while the conversational style sentences are selected from the integrated corpus. For the conversational style sentences, high-frequency sentences, sentences with high-frequency words and high-frequency N-grams, are selected using simple codes, while domain-specific expressions are collected manually. The resulting high type coverage should be due to this meticulous manual classification of domains and sub-domains as well as manual selection work.
The completed script is analyzed using four criteria, word coverage, high-frequency vocabulary coverage, phonetic coverage, and readability. Comparing the completed script to the test corpus, the type coverage of our script is 36.86%, while its token coverage is only 2.97%, which appears to be quite significant. As for the high-frequency vocabulary coverage, our script shows 73.82% compared to that of 61.53% in the test corpus even though the two contain a similar number of tokens.
For each style, the phonetic coverage is analyzed with and without word stress. The diphone coverage and the triphone coverage of the whole script are 86.70% and 38.92%, respectively. In comparison to earlier studies on text design, which mainly focus on selecting minimum sentences with maximum phonetic coverage, this study primarily focuses on a manual design of selecting sentences based on word coverage, which produce results showing higher phonetic coverage than earlier studies.
For future work, it would be possible to transform the manual part of the selection process into an automatized process based on the collected word list and the sentence length of each domain. Also, the four criteria used for analysis in this study can be utilized as the corpus selection criteria for a large recording script.
